HPA

HPA stands for Horizontal Pod Autoscaler and its kubernetes built-in solution for scaling a replica set (adding more pods) based on resource consumption.

Process

Attention

HPA by default depends on the metrics server being available. As mentioned in the monitoring section, this is an extra step

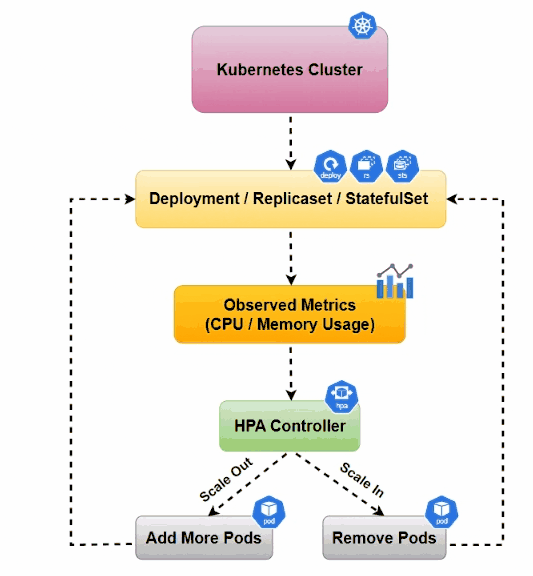

hpa hpa

In here:

  • The hpa is aware of the limit declared by the deployment and is configured with a threshold
  • Hpa monitors metrics servers periodically to check on resource consumption
  • If it goes over the limit, it will add a pod
  • When it goes down it will remove a pod
Manually scaling

The same process could be done manually by observing the metrics and then scaling with kubectl scale ...

Creation

Imperative
$ kubectl autoscale deployment my-app --cpu-percent=50 --min=1 --max=10

As a yaml resource ,for example:

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: my-app-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: my-app
  minReplicas: 1
  maxReplicas: 10
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 50
